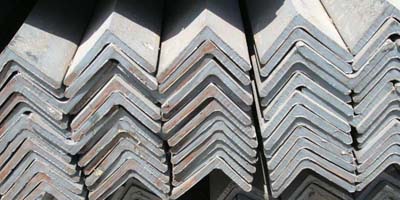

S235JR Shipbuilding Angle steel is producted by Bebon.S235JR Shipbuilding Angle steel is mainly applicate to construction, communications steel tower, civil or agricultural machine making. S235JR shipbuilding Angle steel which is available with following standard: ABS, LR, DNV, GL, NK, KR, BV, CCS, RINA.
S235JR Shipbuilding Angle steel Advantage: precision size and packaging, uniform chemical & composition, stable mechanical property .
S235JR Shipbuilding Angle steel Dimensions
size |
kg/m |
size |
kg/m |
20x20x3 |
0.88 |
80x80x8 |
9.66 |
25x25x3 |
1.12 |
80x80x10 |
11.9 |
25x25x4 |
1.45 |
90x90x7 |
9.58 |
30x30x3 |
1.36 |
90x90x8 |
10.9 |
30x30x4 |
1.78 |
90x90x9 |
12.2 |
30x30x5 |
2.18 |
90x90x10 |
13.5 |
35x35x3 |
1.6 |
100x100x6 |
9.26 |
35x35x4 |
2.1 |
100x100x7 |
10.7 |
40x40x3 |
1.84 |
100x100x8 |
12.2 |
40x40x4 |
2.42 |
100x100x10 |
15.1 |
40x40x5 |
2.97 |
100x100x12 |
178 |
40x40x6 |
3.52 |
120x120x10 |
18.2 |
45x45x3 |
2.09 |
120x120x12 |
21.6 |
45x45x4.5 |
3.06 |
130x130x12 |
23.5 |
45x45x6 |
3.52 |
150x150x10 |
23 |
50x50x3 |
2.32 |
150x150x12 |
27.3 |
50x50x4 |
3.06 |
150x150x15 |
33.8 |
50x50x5 |
3.77 |
160x160x15 |
46.1 |
50x50x6 |
4.47 |
180x180x16 |
43.5 |
60x60x5 |
4.57 |
180x180x18 |
48.6 |
60x60x6 |
5.42 |
200x200x16 |
48.5 |
60x60x8 |
7.09 |
200x200x18 |
54.3 |
65x65x7 |
6.83 |
200x200x20 |
59.9 |
70x70x6 |
6.38 |
200x200x24 |
71.1 |
70x70x7 |
7.38 |
250x250x28 |
104 |
75x75x6 |
6.85 |
250x250x35 |
128 |
75x75x8 |
9.03 |
||
75x75x10 |
11.1 |
||
75x75x12 |
13.1 |
Surface:Black,Galvanized, Painted
Packing: In bundle, fastened by wire rods with two metal tags be attached
Place of Origin:Tianjin,China
Delivery Datail:7-10 Workdays after deposit
Bebon International is a professional S235JR Shipbuilding Angle steel exporter, and a steel stockiest in china. We keep more than 5000 tons S235JR Shipbuilding Angle steel in stock monthly. If you need S235JR Shipbuilding Angle steel,please contact us freely.
